TLP3063

TLP3063, photocoupler GaAs IRED & photo-triac, 50 mA, 100 mW, 5 V, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.38~0.51 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	0.51 / Piece
500 ~ 1000 :	0.45 / Piece
1000 ~ 1500 :	0.38 / Piece

PartNumber:: TLP3063

Brand:: Toshiba Semiconductor - Toshiba | D/C: 11+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-06

From Other Seller

Part Number:TLP3063
US $0.38 - 0.51
Quantity:

piece

Product Summary

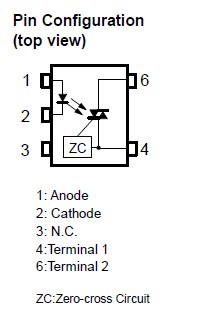

The TLP3063 is a photocoupler GaAs IRED & photo-triac. The TLP3063 consists of a zero voltage crossing turn-on photo-triac optically coupled to a gallium arsenide infrared emitting diode in a six lead plastic DIP package. Applications are (1)office machine; (2)household use equipment; (3)triac driver; (4)solid state relay.

Parametrics

TLP3063 absolute maximum ratings: (1)Forward current IF: 50 mA; (2)Peak forward current (100 μs pulse, 100 pps)IFP: 1 A; (3)Power dissipation PD: 100 mW; (4)Reverse voltage VR: 5 V; (5)Junction temperature Tj: 125 °C; (6)Off-state output terminal voltage VDRM: 600 V; (7)On-state RMS current Ta = 70°C IT(RMS): 50 mA; (8)Peak on-state current (100μs pulse, 120 pps)ITP: 2 A; (9)Peak nonrepetitive surge current (Pw = 10 ms, DC = 10%)ITSM: 1.2 A; (10)Power dissipation PD: 300 mW; (11)Storage temperature range Tstg: -55~150 °C; (12)Operating temperature range Topr: -40~100 °C; (13)Lead soldering temperature (10 s)Tsol: 260 °C; (14)Total package power dissipation PT: 330 mW.

Features

TLP3063 features: (1)Peak Off-State Voltage : 600 V (min); (2)Trigger LED Current: 5 mA (max); (3)On-State Current: 100 mA (max); (4)Isolation Voltage: 5000 Vrms (min).
